● Electronic adjustments
Multiple independent adjustment possibilities by 3+2 motors offer patient comfort, plus a reduction in work for staff.
3 motors as standard:
- backrest
- seat tilt
- legrest
- seat height adjustment (optional)
- footrest (optional)
● Manual adjustment
- footrest adjustment manually (optional electronic footrest adjustment is also available)
back to top
|
|
|
 |

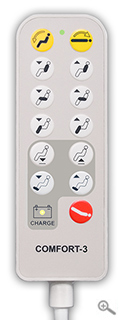

● Handset
Especially designed for medical applications:
- Longlife micro-switches are located under an exchangeable keypad foil
- Liquid proof housing with IP 67 protection
- Easy-to-use 13 buttons handset
Dedicated grey buttons for each movement.
- Yellow coloured buttons to set Entry, Bed positions by multimovement
- The head-down "Trendelenburg" position can be reached easily from any previous one by using the red button
back to top
|
|
| |
● Tilt-up armrest
The solid upholstered armrest makes it possible to achieve the most suitable and restful arm position for any physique.
It can adjusted in height and entry is facilitated by simply tilting it up.
The multilayered soft armrest cushion is completely sealed against liquids and ensures improved patient comfort.
The distance between armrests can be adjusted also by swivelling completely.
back to top
|
Tilted-up position
Tilted-down position
|
| |
 |
● Brake system/castors
Diameter 7.5 cm twin wheel castor with total lock.
Locks the wheels (twin wheel) and swivel simultaneously for maximum stability when the equipment is stationary.
- Twin wheel rotational motion in both directions (lockable)
- Swivel motion in both directions (lockable)
- Central operating brake with 4x diam. 7.5 cm twin wheel castors is optional
back to top |
|
| |
● Exchangeable upholstery
Clean and modern design with dual colour for fresh look
It has been designed according to the latest developments in orthopaedics and ergonomics.
Can be removed easily with a few movements for cleaning or maintenance. Interchangeable with the previous upholstery types.
This new easy-to-clean upholstery covered by blood resistant artificial leather which is resistant to disinfectants, blood and urine too. The unified seat and legrest surfaces are more comfortable and easier to clean.
Instead of standard Chrom/Perle upholstery more than 50 alternative colours are available upon request.
|
Standard colour upholstery
DuoShape upholstery
|
| |
|
● Several other colour combinations available
Sample Upholstery Colours
* More than 50 colours are available upon request
back to top
|
| |
● Specialities:
Perfect horizontal BED position
Real TRB position that meets TRB Compliance of EN 60 601-2-52 201.15.4.6.2"with the mattress support in the flat position , tilting of entire mattress support platform a minimum of 12 degrees so that the patient head is lower than the circulatory centre point of the body"
Weight measurement system
It provides continuous monitoring of patient weight and weight change during treatments.
It has been tested and certified by Notified Body which is required for Authenticated Officials to legally verify accuracy of the scale.
back to top
|
|
| |
| Technical specification |
| Fixed seat height |
58 cm |
| Optional height adjustment range |
62-75 cm |
| Backrest adjusting range |
80° (-14° under horizontal in Trendelenburg position) |
| Seat tilt adjustment |
14° |
| Legrest adjustment |
30° |
| Footrest adjustment |
25 cm |
| Size of upholstery |
L 210 × W 60 × H 9.5 cm |
| Armrest size |
L 57 × W 15 × H 6.5 cm |
| Approved scale accuracy |
100 g |
| Dimensions in seat position |
L 145 × W 87.5 cm |
| Size of castors |
4 × Ø 7.5 cm twin wheel castors with total lock |
| Weight of chair |
90 kg |
| Maximal load |
200 kg weight capacity |
| Standard power supply |
100-240 V AC, 50/60 Hz |
| Technical data of motors |
24V DC, IPX6 |
| Applied directive and standards |
93/42/EEC and harmonized standards
(EN60601-1; EN60601-2-52; etc.) |
|
back to top
|
|
| Optional accessories |
Art-Nr.
|
| EPN kit incl. multicontact pin with internal connecting cable HIGHLY RECOMMENDED FOR DIALYSIS |
713E004 |
| Trendelenburg foot-switches on both sides of underframe |
713E005 |
| Rechargeable battery back-up operation in case power failure (24V DC) |
713E006 |
| Connecting cable (3 m) for potential equalization (EPN) |
713E012 |
| Flexible height adjustable armrest for universal medical applications (one pair) |
713M010 |
| Integrated gas spring in the arm support for smoother and safer operation (one pair) |
713M011 |
| Push bar |
713M012 |
| Universal holder for tablets and smartphones |
713M013 |
| Handle on both sides of the seat |
713M014 |
| 4× diameter 10 cm swivel castors with total lock |
713M021 |
| Motorized footrest |
713M032 |
| Paper roll holder |
713M033 |
| Motorised height adjustment |
713M049 |
| Central operating brake with 4× diam. 7.5 cm twin wheel castors |
713M050 |
| Individual logo on the upholstery |
713U011 |
| Headrest pillow square |
713U012 |
| DuoShape upholstery in individual colour combination (40 diff. colours) TUNDRA |
713U026 |
| Transparent protecting plastic cover for the footrest |
713U027 |
| Transparent protecting plastic cover for the legrest adjustable between 0° and -30° below horizontal |
713U028 |
| DuoShape upholstery with flame retardant artificial leather combination (15 diff. colours) PALMA |
713U035 |
|
)
)
)
)
)
)
)
)
